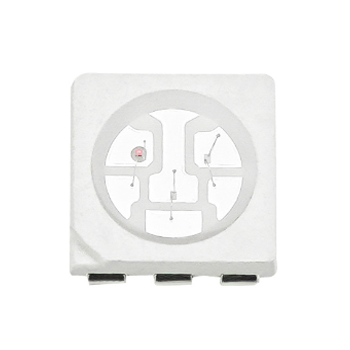

H16-H550RGBW
- Manufacturer: QILSTE
- Package: SMD
- Description: 全彩RGB 5.4*5.0*1.6
- RoHs Status: Rohs Compliant
1Product descriptionDescribe/ Features
• physical dimension/Package (L/W/H): 5.4x5.0x1.6mm
-
color/ Color: High red light, blue light, green light/Ultra Brightred/Green/Blue Full Color
-
colloid/ Lens: Mist -surface plane colloid/ Diffuse Flat Mold
-
EIAStandard standard packaging/ EIA STD Pactkage
-
Environmental products, in line withROHSRequire/ Meet Rohs, Green Product
-
Moisture -proof level: Level 5A /Moisture Sensitivity: Level 5A
-
Suitable for SMT assembly and welding process/ Compatible with SMT Assembly and Solder Process
4The maximum absolute rated value/ Absolute maximum ratings(TA = 25℃.
|
Parameter Parameter |
symbol Symbol |
Maximum rated value Rating |
unit Unit |
|
|
Power consumption Power DISSIPATION |
PD |
R |
65 |
MW |
|
G |
90 |
|||
|
B |
90 |
|||
|
Maximum pulse current/ Peak FORWARD CURRENT (1/10 Duty ratio, 0.1ms VeinCure |
IFP |
R |
70 |
ma |
|
G |
100 |
|||
|
B |
100 |
|||
|
Positive DC work current DC FORWARD CURRENT |
If |
R/g/b |
25 |
ma |
|
Reverse voltage Reverse Voltage |
VR |
R/g/b |
5 |
V |
|
Working temperature Operating Temperature Range |
TOPR |
-30°C ~+ 85°C |
||
|
Storage environment temperature Storage Temperator Range |
TSTG |
-40°C ~+ 90°C |
||
|
Welding conditions Soldering Condition |
TSOL |
Refund welding/ Reflow Soldering: 260°C ,,10s Manual welding/ Hand Soldering: 300°C ,,3S |
||
5,Optical parameters/ Electrical Optical Characteristics(TA = 25℃.
|
Parameter Parameter |
symbol Symbol |
color Coloror |
Minimum Min. |
Represent Typ. |
Maximum MAX. |
unit Unit |
Test Conditions Test Condition |
|
Light Luminous intensity |
IV |
R |
- |
800 |
- |
MCD |
If = 20mA |
|
G |
- |
1600 |
- |
||||
|
B |
- |
450 |
- |
||||
|
Halflight strong angle Viewing angle |
2θ1/2 |
--- |
--- |
120 |
--- |
DEG |
If = 20mA |
|
Main wavelength Dominant wavelength |
λD |
R |
615 |
--- |
630 |
NM |
If = 20mA |
|
G |
515 |
--- |
530 |
||||
|
B |
460 |
--- |
475 |
||||
|
Peak wavelength Peak wavelenth |
λp |
R |
--- |
620 |
--- |
NM |
If = 20mA |
|
G |
518 |
||||||
|
B |
--- |
460 |
--- |
||||
|
Semi -width Spectral Line Half-Width |
Δλ |
R |
--- |
20 |
--- |
NM |
If = 20mA |
|
G |
25 |
||||||
|
B |
--- |
twenty two |
--- |
||||
|
Forward Voltage Forward Voltage |
VF |
R |
1.8 |
--- |
2.4 |
V |
If = 20mA |
|
G |
2.8 |
--- |
3.6 |
||||
|
B |
2.8 |
--- |
3.6 |
||||
|
Reverse current Reverse Current |
Ir |
R/g/b |
--- |
--- |
5 |
μA |
VR = 5V |
