H4-116BRG/5M
- Manufacturer: QILSTE
- Package: SMD

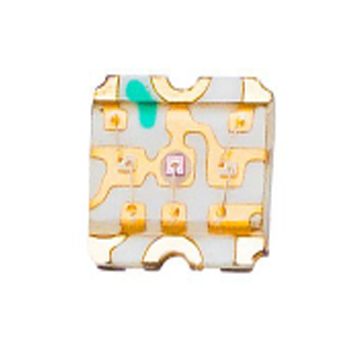

- Description: 全彩RGB 1.6*1.6*0.4
- RoHs Status: Rohs Compliant
1,Product Description/ Features
Bleak physical dimension/Package (L/W/H): 1.6x1.6x0.4mm
-
color/ Color: High red light, emerald green, blue/Ultra Bright Red/Green/Blue Color
-
colloid/ Lens: Transparent plane collagen/ Water Clear Flat Mold
-
EIAStandard standard packaging/ EIA STD Pactkage
-
Environmental products, in line withROHSRequire/ Meet Rohs, Green Product
-
Moisture -proof level: Level 3 / Moisture Sensitivity: Level 3
-
Suitable for SMT assembly and welding process/ Compatible with SMT Assembly and Solder Process
4The maximum absolute rated value/ Absolute maximum ratings (TA = 25℃) ℃)
|
Parameter Parameter |
symbol Symbol |
Maximum rated value Rating |
Uniter Unit |
|
|
Power consumption Power DISSIPATION |
PD |
R |
65 |
MW |
|
G |
90 |
|||
|
B |
90 |
|||
|
Maximum pulse current/ Peak FORWARD CURRENT (1/10 Duty ratio, 0.1ms VeinCure |
IFP |
R |
70 |
ma |
|
G |
70 |
|||
|
B |
70 |
|||
|
Positive DC work current DC FORWARD CURRENT |
If |
R/g/b |
25 |
ma |
|
Reverse voltage Reverse Voltage |
VR |
R/g/b |
5 |
V |
|
Working temperature Operating Temperature Range |
TOPR |
-30°C ~ + 85°C |
||
|
Storage environment temperature Storage Temperator Range |
TSTG |
-40°C ~ + 90°C |
||
|
Welding conditions Soldering Condition |
TSOL |
Refund welding/ Reflow Soldering: 260°C ,,10s Manual welding/ Hand Soldering: 300° C ,,3S |
||
5,Optical parameters/ Electrical Optical Characteristics (TA = 25℃) ℃)
|
Parameter Parameter |
symbol Symbol |
color Coloror |
Minimum Min. |
Represent Typ. |
Maximum MAX. |
Uniter Unit |
Test Conditions Test Condition |
|
Light Luminous intensity |
IV |
R |
- |
45 |
- |
MCD |
If = 5ma |
|
G |
- |
285 |
- |
||||
|
B |
- |
45 |
- |
||||
|
Halflight strong angle Viewing angle |
2θ1/2 |
--- |
--- |
120 |
--- |
DEG |
If = 5ma |
|
Main wavelength Dominant wavelength |
λD |
R |
615 |
--- |
625 |
NM |
If = 5ma |
|
G |
515 |
--- |
530 |
||||
|
B |
460 |
--- |
470 |
||||
|
Peak wavelength Peak wavelenth |
λp |
R |
--- |
630 |
--- |
NM |
If = 5ma |
|
G |
515 |
||||||
|
B |
--- |
460 |
--- |
||||
|
Semi -width Spectral Line Half-Width |
Δλ |
R |
--- |
20 |
--- |
NM |
If = 5ma |
|
G |
25 |
||||||
|
B |
--- |
twenty two |
--- |
||||
|
Forward Voltage Forward Voltage |
VF |
R |
1.8 |
--- |
2.4 |
V |
If = 5ma |
|
G |
2.5 |
--- |
3.2 |
||||
|
B |
2.5 |
--- |
3.2 |
||||
|
Reverse current Reverse Current |
Ir |
R/g/b |
--- |
--- |
5 |
μA |
VR = 5V |
