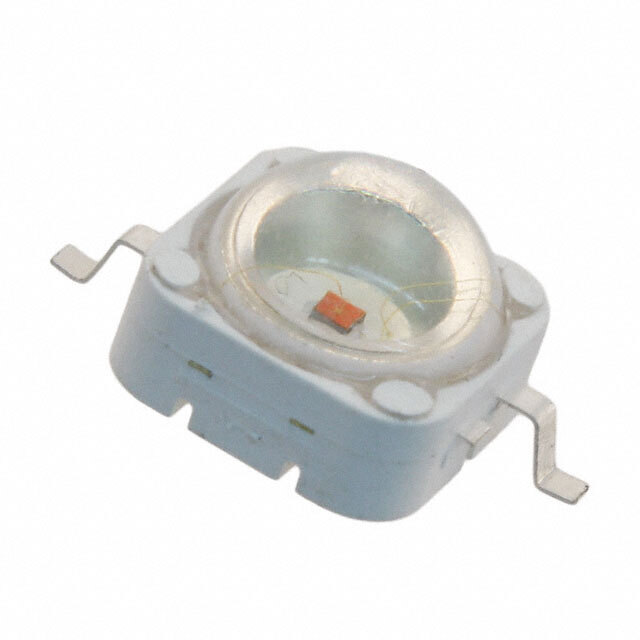

AAD1-9090SY28ZC
- Manufacturer: Kingbright
- Package: 2-SMD, Gull Wing Exposed Pad
- Description: LED AAD1-9090 YELLOW 588NM
- RoHs Status:
Specifications
| Height - Seated (Max) | 0.267" (6.78mm) |
| Color | Yellow |
| Current - Test | 350mA |
| Current - Max | 350mA |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Temperature - Test | 25°C |
| Lumens/Watt @ Current - Test | 37 lm/W |
| Wavelength | 588nm (Typ) |
| Size / Dimension | 0.354" L x 0.354" W (9.00mm x 9.00mm) |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Mounting Type | Surface Mount |
| Viewing Angle | 100° |
| Luminous Flux @ Current/Temperature | 32lm (Typ) |
| Supplier Device Package | - |
| Product Status | Active |
