APBVDA3020SURKCGKC
- Manufacturer: Kingbright
- Package: SMD
- Description: LED GRN/RED CLEAR SMD R/A
- RoHs Status:
Specifications
| Height (Max) | 2.00mm |
| Color | Green, Red |
| Lens Color | Colorless |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Lens Size | 1.90mm Dia |
| Configuration | Common Anode |
| Current - Test | 20mA Green, 20mA Red |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.95V Red |
| Features | - |
| Wavelength - Peak | 574nm Green, 650nm Red |
| Wavelength - Dominant | 570nm Green, 630nm Red |

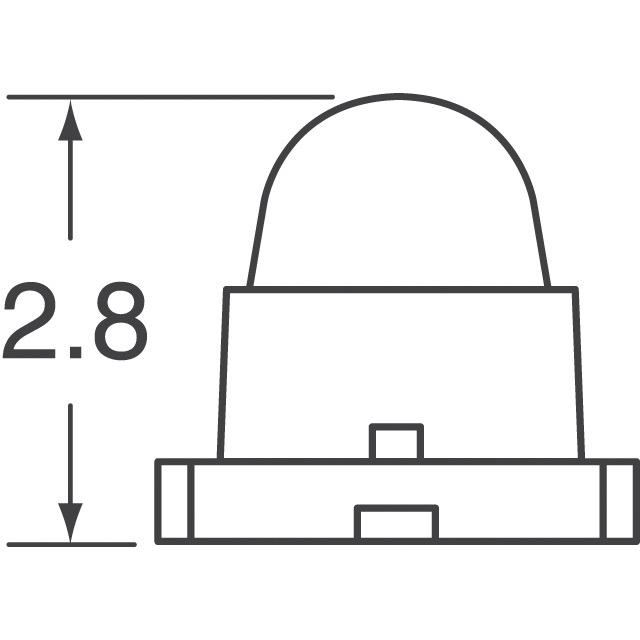

| Size / Dimension | 3.00mm L x 2.80mm W |
| Package / Case | 3-SMD, No Lead |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | 15° |
| Supplier Device Package | SMD |
| Product Status | Active |
| Millicandela Rating | 320mcd Green, 900mcd Red |
