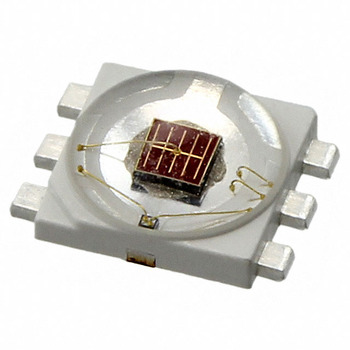

ASMT-JR10-ARS01
- Manufacturer: Broadcom Limited
- Package: 6-SMD, Flat Lead Exposed Pad
- Description: LED RED 628NM 1W
- RoHs Status:
Specifications
| Height - Seated (Max) | 0.077" (1.95mm) |
| Color | Red |
| Current - Test | 350mA |
| Current - Max | 500mA |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Temperature - Test | 25°C |
| Lumens/Watt @ Current - Test | 95 lm/W |
| Wavelength | 628nm (620nm ~ 635nm) |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Package / Case | 6-SMD, Flat Lead Exposed Pad |
| Mounting Type | Surface Mount |
| Viewing Angle | 165° |
| Luminous Flux @ Current/Temperature | 70lm (52lm ~ 87lm) |
| Supplier Device Package | - |
| Product Status | Last Time Buy |
