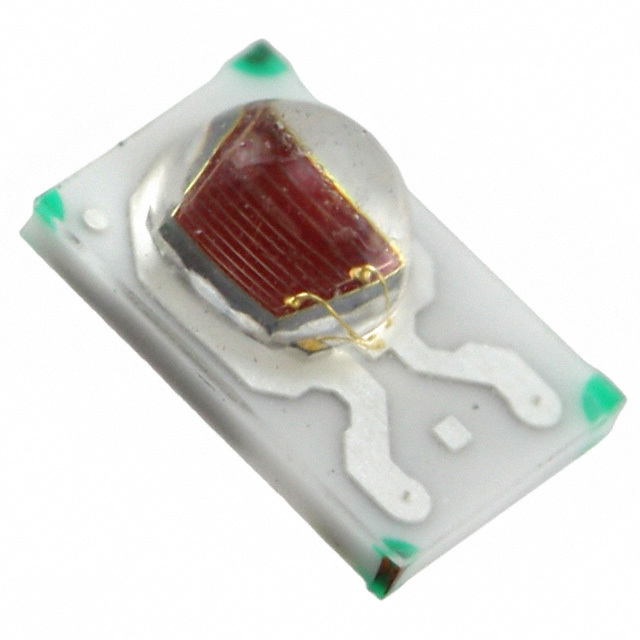

ELSH-F41O1-0LPNM-AR3R4
- Manufacturer: Everlight Electronics Co Ltd
- Package: SMD
- Description: LED SHUEN ORANGE 615NM SMD
- RoHs Status:
Specifications
| Height - Seated (Max) | 0.085" (2.15mm) |
| Color | Orange |
| Current - Test | 350mA |
| Current - Max | 600mA |
| Voltage - Forward (Vf) (Typ) | 2.35V |
| Temperature - Test | 25°C |
| Lumens/Watt @ Current - Test | 60 lm/W |
| Wavelength | 615nm (610nm ~ 620nm) |
| Size / Dimension | 0.120" L x 0.177" W (3.05mm x 4.50mm) |
| Package / Case | 1218 (3246 Metric) |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Luminous Flux @ Current/Temperature | 49lm (45lm ~ 52lm) |
| Supplier Device Package | SMD |
| Product Status | Active |
