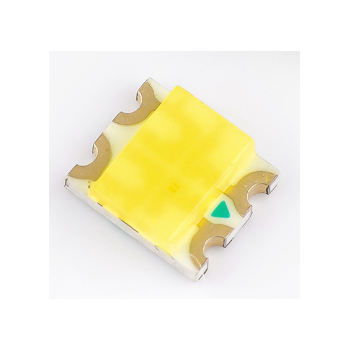

H11-S327TCGLB
Bleak physical dimension/Package (L/W/h): 3.2x2.7x1.1mm
color/ Color: Highlighting blue light, emerald green light/ Ultra Bright Blue / Green Bi-Color
colloid/ Lens: Transparent plane collagen/ Water Clear Flat Mold
EIAStandard standard packaging/ EIA STD Pactkage
Environmental products, in line withROHSRequire/ Meet Rohs, Green Product
Moisture -proof level: Level 3 / Moisture Sensitivity: Level 3
Suitable for SMT assembly and welding process/ Compatible with SMT Assembly and Solder Process
Parameter Parameter |
symbol Symbol |
Maximum rated value Rating |
Uniter Unit |
|
Power consumption Power DISSIPATION |
PD |
G |
90 |
MW |
B |
90 |
|||
Maximum pulse current/ Peak FORWARD CURRENT (1/10 Duty ratio, 0.1ms VeinCure |
IFP |
G |
100 |
ma |
B |
100 |
|||
Positive DC work current DC FORWARD CURRENT |
If |
G |
25 |
ma |
B |
25 |
|||
Reverse voltage Reverse Voltage |
VR |
G |
5 |
V |
B |
5 |
|||
Working temperature Operating Temperature Range |
TOPR |
-30°C ~ + 85°C |
||
Storage environment temperature Storage Temperator Range |
TSTG |
-40°C ~ + 90°C |
||
Welding conditions Soldering Condition |
TSOL |
Refund welding/ Reflow Soldering: 260°C ,,10s Manual welding/ Hand Soldering: 300°C ,,3S |
Parameter Parameter |
symbol Symbol |
color Coloror |
Minimum Min. |
Represent Typ. |
Maximum MAX. |
Uniter Unit |
Test Conditions Test Condition |
Light Luminous intensity |
IV |
G |
--- |
720 |
--- |
MCD |
If = 20mA |
B |
--- |
150 |
--- |
||||
Halflight strong angle Viewing angle |
2θ1/2 |
--- |
--- |
120 |
--- |
DEG |
If = 20mA |
Main wavelength Dominant wavelength |
λD |
G |
515 |
--- |
533 |
NM |
If = 20mA |
B |
461 |
--- |
473 |
||||
Peak wavelength Peak wavelenth |
λp |
G |
--- |
515 |
--- |
NM |
If = 20mA |
B |
--- |
460 |
--- |
||||
Semi -width Spectral Line Half-Width |
Δλ |
G |
--- |
25 |
--- |
NM |
If = 20mA |
B |
--- |
25 |
--- |
||||
Forward Voltage Forward Voltage |
VF |
G |
2.8 |
--- |
3.6 |
V |
If = 20mA |
B |
2.8 |
--- |
3.6 |
||||
Reverse current Reverse Current |
Ir |
G |
--- |
--- |
5 |
μA |
VR = 5V |
B |
--- |
--- |
5 |
