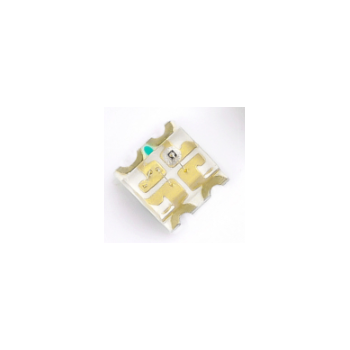

H6-S115SYKYG
- Manufacturer: QILSTE
- Package: SMD
- Description: 黄色+黄绿色 1.6*1.5*0.55
- RoHs Status: Rohs Compliant
1,Product Description/ Features
Bleak physical dimension/Package (L/W/H): 1.6X1.5X0.55mm
-
color/ Color: Highlight yellow light, yellow green/ Ultra Bright Y/ YG Color
-
colloid/ Lens: Transparent plane collagen/ Water Clear Flat Mold
-
EIAStandard standard packaging/ EIA STD Pactkage
-
Environmental products, in line withROHSRequire/ Meet Rohs, Green Product
-
Moisture -proof level: Level 3 / Moisture Sensitivity: Level 3
-
Suitable for SMT assembly and welding process/ Compatible with SMT Assembly and Solder Process
4The maximum absolute rated value/ Absolute maximum ratings (TA = 25℃) ℃)
|
Parameter Parameter |
symbol Symbol |
Maximum rated value Rating |
Uniter Unit |
|
|
Power consumption Power DISSIPATION |
PD |
Y |
65 |
MW |
|
Yg |
65 |
|||
|
Maximum pulse current/ Peak FORWARD CURRENT (1/10 Duty ratio, 0.1ms VeinCure |
IFP |
Y |
70 |
ma |
|
Yg |
70 |
|||
|
Positive DC work current DC FORWARD CURRENT |
If |
Y |
25 |
ma |
|
Yg |
25 |
|||
|
Reverse voltage Reverse Voltage |
VR |
Y |
5 |
V |
|
Yg |
5 |
|||
|
Working temperature Operating Temperature Range |
TOPR |
-30°C ~ + 85°C |
||
|
Storage environment temperature Storage Temperator Range |
TSTG |
-40°C ~ + 90°C |
||
|
Welding conditions Soldering Condition |
TSOL |
Refund welding/ Reflow Soldering: 260°C ,,10s Manual welding/ Hand Soldering: 300°C ,,3S |
||
|
Anti -static capacity Electrostatic Discharge |
ESD |
2000 |
V |
|
