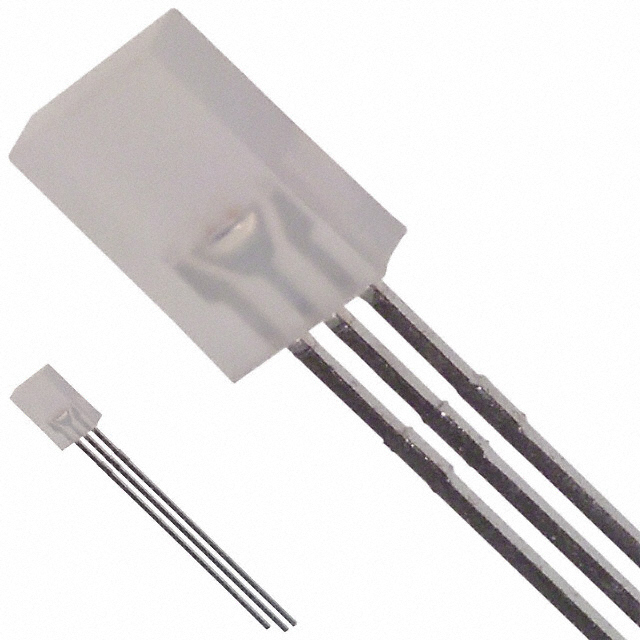

HLMP-0800
- Manufacturer: Broadcom Limited
- Package: Rectangular 2mmx5mm
- Description: LED GRN/RED DIFF RECT 2X5MM T/H
- RoHs Status:
Specifications
| Height (Max) | 8.00mm |
| Color | Green, Red |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Lens Size | 5.06mm x 2.11mm |
| Configuration | Common Cathode |
| Current - Test | 20mA Green, 20mA Red |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 1.9V Red |
| Features | - |
| Wavelength - Peak | 568nm Green, 635nm Red |
| Wavelength - Dominant | 570nm Green, 626nm Red |
| Size / Dimension | - |
| Package / Case | Radial - 3 Leads |
| Mounting Type | Through Hole |
| Viewing Angle | 100° |
| Supplier Device Package | Rectangular 2mmx5mm |
| Product Status | Active |
| Millicandela Rating | 2.6mcd Green, 2.1mcd Red |
