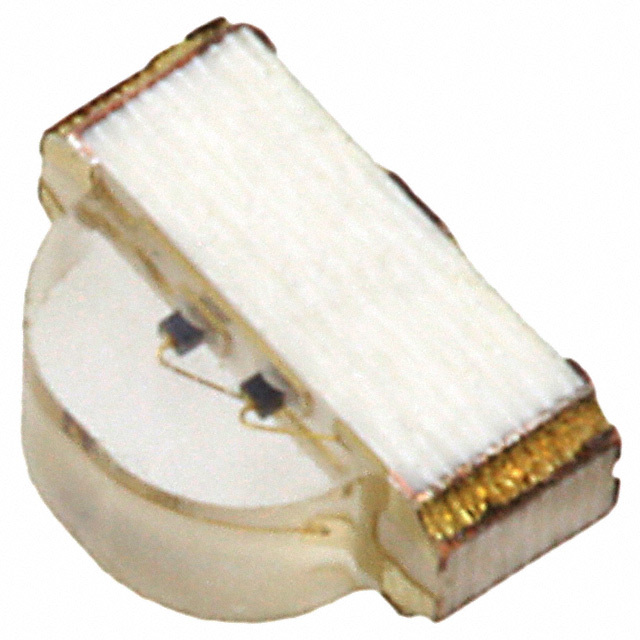

LTST-S326KGJRKT
- Manufacturer: LITEON
- Package: Chip LED
- Description: LED GREEN/RED CLEAR CHIP SMD R/A
- RoHs Status:
Specifications
| Height (Max) | 1.00mm |
| Color | Green, Red |
| Lens Color | Colorless |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Lens Size | 2.00mm x 1.00mm |
| Configuration | Common Anode |
| Current - Test | 20mA Green, 20mA Red |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red |
| Features | - |
| Wavelength - Peak | 574nm Green, 639nm Red |
| Wavelength - Dominant | 571nm Green, 631nm Red |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Package / Case | 2-SMD, No Lead |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | 130° |
| Supplier Device Package | Chip LED |
| Product Status | Active |
| Millicandela Rating | 35mcd Green, 45mcd Red |
