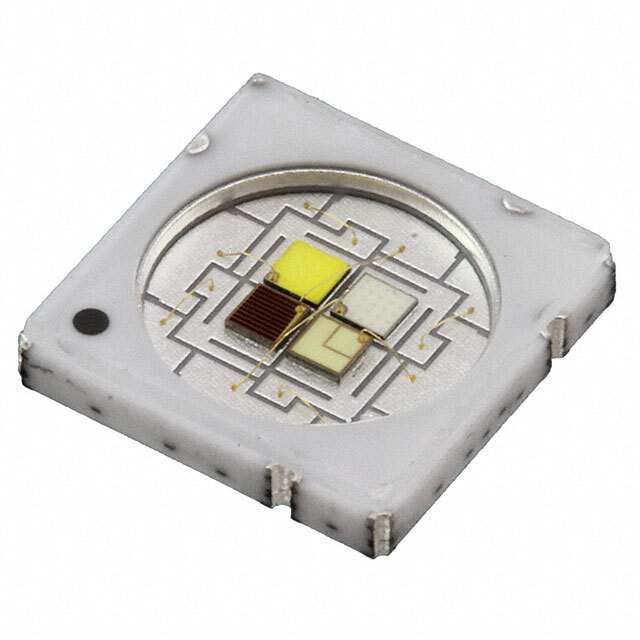

LZ4-04MDC9-0000
- Manufacturer: OSRAM SYLVANIA Inc.
- Package: SMD
- Description: LED LUXIGEN LZ4 RGBW SMD
- RoHs Status:
Specifications
| Height - Seated (Max) | 0.059" (1.50mm) |
| Color | Red, Green, Blue, White - Cool (RGBW) |
| Current - Test | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Current - Max | 1A Red, 1A Green, 1A Blue, 1A White |
| Voltage - Forward (Vf) (Typ) | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White |
| Temperature - Test | 25°C |
| Lumens/Watt @ Current - Test | 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W |
| Wavelength | 624nm Red, 525nm Green, 457nm Blue, 6500K White |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Package / Case | 2828 (7070 Metric) |
| Mounting Type | Surface Mount |
| Viewing Angle | 110° |
| Luminous Flux @ Current/Temperature | 62lm Red, 133lm Green, 24lm Blue, 183nm White |
| Supplier Device Package | SMD |
| Product Status | Obsolete |
