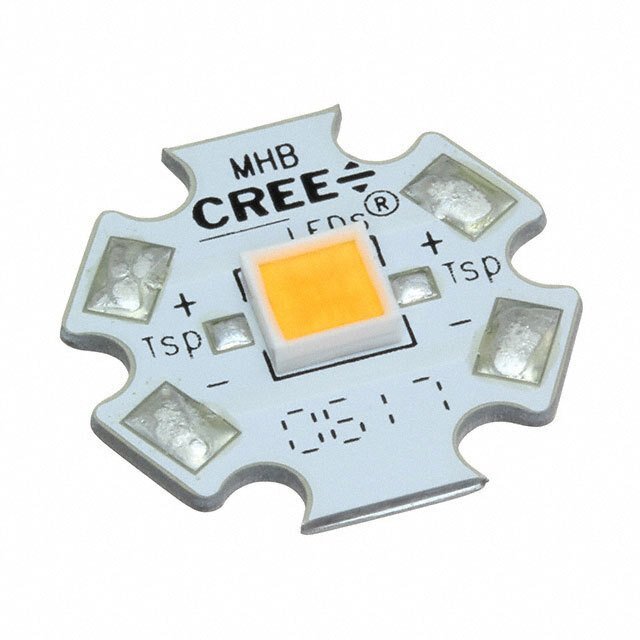

MHBBWT-0000-000C0HC427G-SB01
- Manufacturer: New Energy
- Package: Tray
- Description: LED MODULE MHB-B 2700K STARBOARD
- RoHs Status:
Specifications
| Height | - |
| Color | White, Warm |
| Lens Type | Flat |
| Configuration | Starboard |
| Type | LED Module |
| Current - Test | 480mA |
| Current - Max | 700mA |
| Voltage - Forward (Vf) (Typ) | 8.75V |
| Features | - |
| Temperature - Test | 85°C |
| Lumens/Watt @ Current - Test | 117 lm/W |
| Wavelength | - |
| Size / Dimension | 19.89mm Dia |
| Viewing Angle | 115° |
| Light Emitting Surface (LES) | - |
| Luminous Flux @ Current/Temperature | 493lm (475lm ~ 510lm) |
| Product Status | Active |
| CRI (Color Rendering Index) | 80 |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
