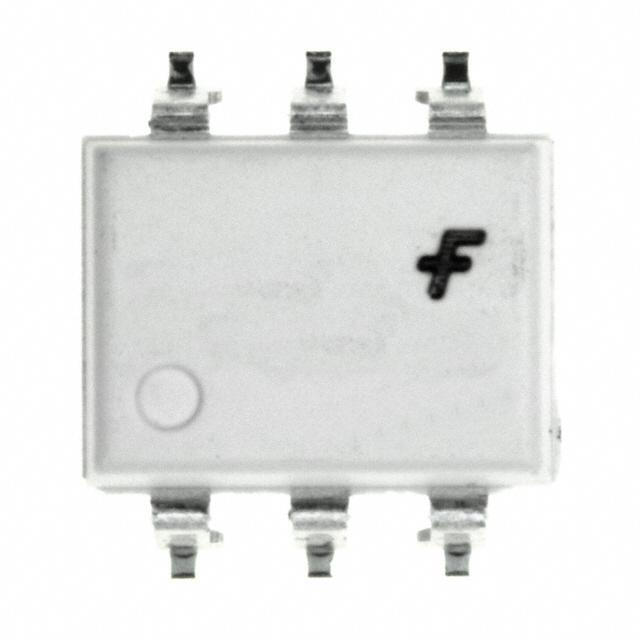

MOC3063SR2M
- Manufacturer: onsemi
- Package: 6-SMD
- Description: OPTOISOLATOR 4.17KV TRIAC 6SMD
- RoHs Status:
Specifications
| Static dV/dt (Min) | 600V/µs |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Output Type | Triac |
| Current - DC Forward (If) (Max) | 60 mA |
| Current - On State (It (RMS)) (Max) | - |
| Current - Hold (Ih) | 500µA (Typ) |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Voltage - Isolation | 4170Vrms |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Voltage - Off State | 600 V |
| Approval Agency | UL |
| Turn On Time | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 6-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-SMD |
| Product Status | Active |
