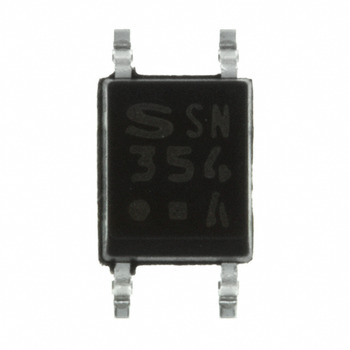

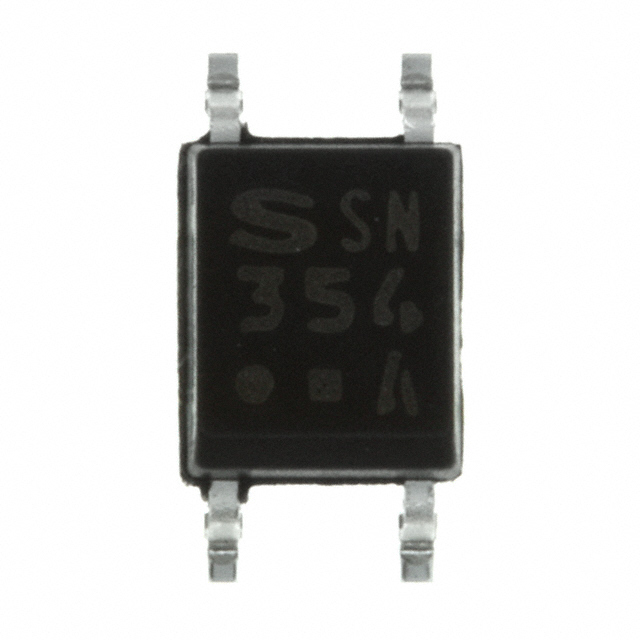

PC354N1
- Manufacturer: Sharp Microelectronics
- Package: 4-SMD
- Description: OPTOISOLATOR 3.75KV TRANS 4-SMD
- RoHs Status:
Specifications
| Number of Channels | 1 |
| Output Type | Transistor |
| Input Type | AC, DC |
| Current Transfer Ratio (Min) | 50% @ 1mA |
| Current Transfer Ratio (Max) | 150% @ 1mA |
| Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Voltage - Isolation | 3750Vrms |
| Voltage - Output (Max) | 80V |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Turn On / Turn Off Time (Typ) | - |
| Operating Temperature | -30°C ~ 100°C |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-SMD |
| Product Status | Obsolete |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Vce Saturation (Max) | 200mV |
