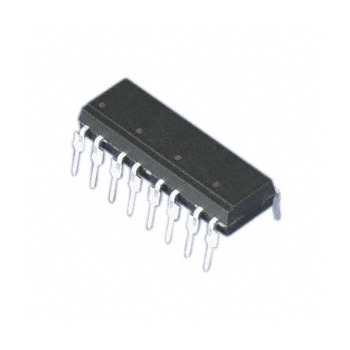

PC844X
- Manufacturer: Sharp Microelectronics
- Package: 16-DIP
- Description: OPTOISOLTR 5KV 4CH TRANS 16-DIP
- RoHs Status:
Specifications
| Number of Channels | 4 |
| Output Type | Transistor |
| Input Type | AC, DC |
| Current Transfer Ratio (Min) | 20% @ 1mA |
| Current Transfer Ratio (Max) | 300% @ 1mA |
| Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Voltage - Isolation | 5000Vrms |
| Voltage - Output (Max) | 80V |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Turn On / Turn Off Time (Typ) | - |
| Operating Temperature | -30°C ~ 100°C |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-DIP |
| Product Status | Obsolete |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Vce Saturation (Max) | 200mV |
