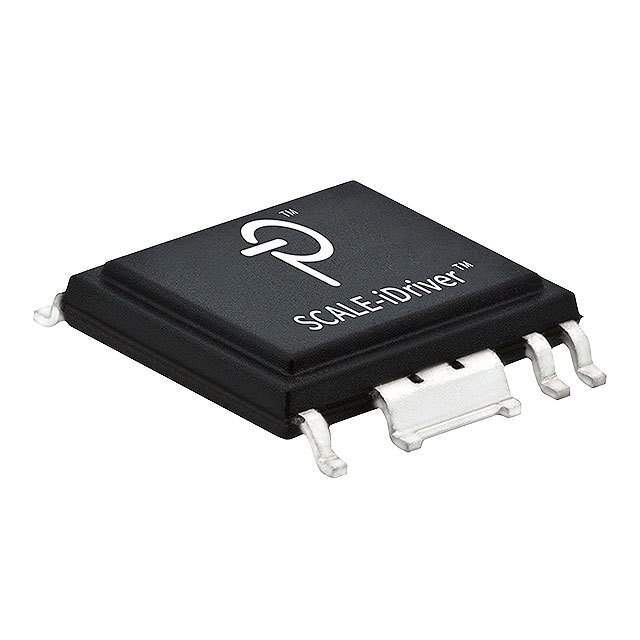

SID1182K-TL Image

SID1182K-TL

  • Manufacturer: Power Integrations
  • Package: eSOP-R16B
  • Description: DGTL ISO 5KV GATE DRVR ESOP-R16B
  • RoHs Status:
Download PDF
Specifications
Number of Channels 1
Pulse Width Distortion (Max) -
Current - Output High, Low 3.6A, 4A
Current - DC Forward (If) (Max) -
Current - Peak Output 8A
Voltage - Isolation 5000Vrms
Voltage - Output Supply 22V ~ 28V
Voltage - Forward (Vf) (Typ) -
Technology Magnetic Coupling
Approval Agency -
Operating Temperature -40°C ~ 125°C
Package / Case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Mounting Type Surface Mount
Common Mode Transient Immunity (Min) -
Supplier Device Package eSOP-R16B
Propagation Delay tpLH / tpHL (Max) 340ns, 330ns
Product Status Active
Rise / Fall Time (Typ) 90ns, 81ns
