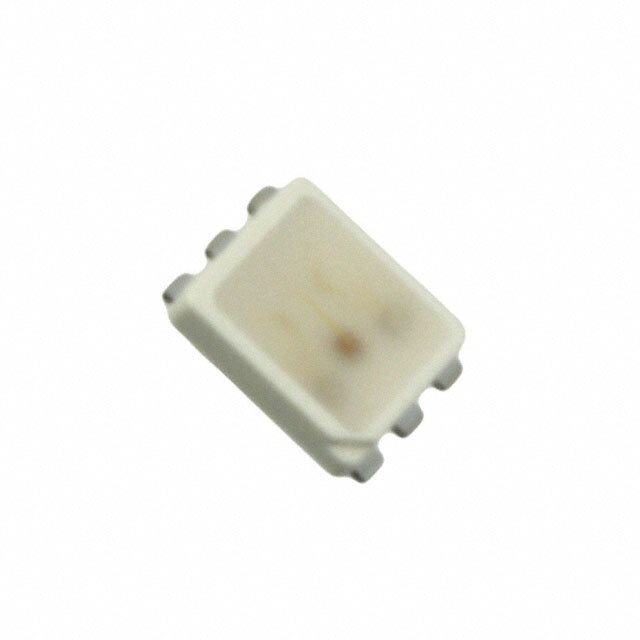

SMLV56RGB1W1
- Manufacturer: LAPIS Technology
- Package: 1411 (3528)
- Description: LED RGB DIFFUSED 1411 SMD
- RoHs Status:
Specifications
| Height (Max) | 0.70mm |
| Color | Red, Green, Blue (RGB) |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Lens Size | - |
| Configuration | Independent |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.3V Green, 3.3V Blue |
| Features | - |
| Wavelength - Peak | - |
| Wavelength - Dominant | 624nm Red, 527nm Green, 470nm Blue |
| Size / Dimension | 3.10mm L x 2.80mm W |
| Package / Case | 6-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Viewing Angle | - |
| Supplier Device Package | 1411 (3528) |
| Product Status | Obsolete |
| Millicandela Rating | 700mcd Red, 1200mcd Green, 400mcd Blue |
