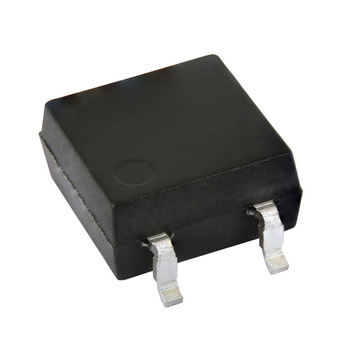

VOMA617A-X001T
- Manufacturer: Vishay Semiconductor Opto Division
- Package: 4-SOP
- Description: SINGLE CHANNEL, 80V, SOP-4 PHOTO
- RoHs Status:
Specifications
| Number of Channels | 1 |
| Output Type | Transistor |
| Input Type | DC |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 20 mA |
| Voltage - Isolation | 3750Vrms |
| Voltage - Output (Max) | 80V |
| Voltage - Forward (Vf) (Typ) | 1.33V |
| Turn On / Turn Off Time (Typ) | 4.9µs, 3.3µs |
| Operating Temperature | -40°C ~ 110°C |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-SOP |
| Product Status | Active |
| Rise / Fall Time (Typ) | 2.3µs, 3.2µs |
| Vce Saturation (Max) | 400mV |
