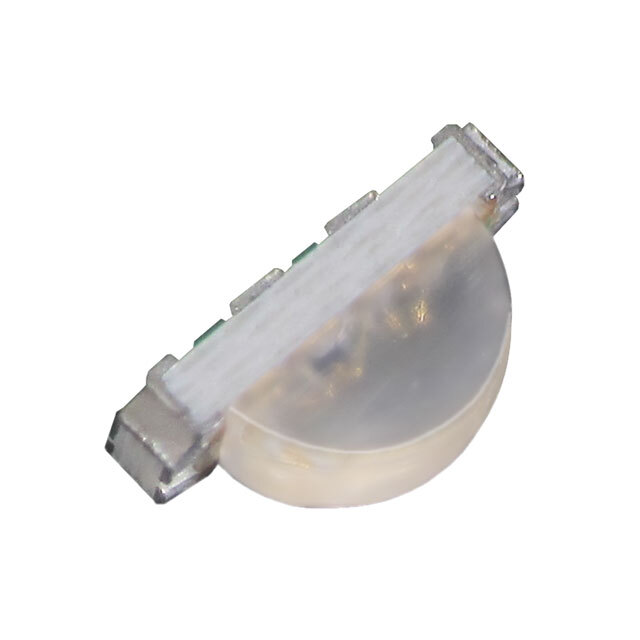

XZCBDDGME56W
- Manufacturer: SunLED
- Package: SMD
- Description: LED RGB CLEAR SMD R/A
- RoHs Status:
Specifications
| Height (Max) | 1.50mm |
| Color | Red, Green, Blue (RGB) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Lens Size | 2.00mm x 1.00mm |
| Configuration | Common Anode |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Features | - |
| Wavelength - Peak | 630nm Red, 515nm Green, 468nm Blue |
| Wavelength - Dominant | 621nm Red, 525nm Green, 470nm Blue |
| Size / Dimension | 3.00mm L x 1.00mm W |
| Package / Case | 4-SMD, No Lead |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | 120° |
| Supplier Device Package | SMD |
| Product Status | Active |
| Millicandela Rating | 69mcd Red, 397mcd Green, 447mcd Blue |
