WS2813B-V5
- Manufacturer: 华彩威
- Package: 5050-6Pins
- Description: 内置IC幻彩RGB
- RoHs Status: Rohs Compliant
Main application field
● Consumer electronics field;
● ledThe field of lighting brightening;
● Computer and peripheral equipment\Gaming equipment\Various electrical equipment fields.

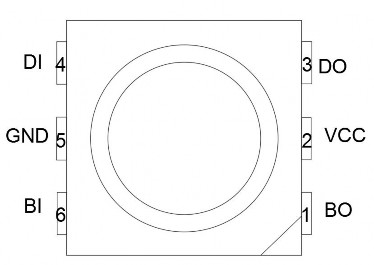

Mechanical Dimensions(unitmm.
Arranged
Maximum rated value(If there is no special explanation,TA= 25 ℃,,VSS= 0V.
|
parameter |
symbol |
scope |
unit |
|
voltage |
VCC |
+3.7 ~+5.3 |
V |
|
Logic input voltage |
VI |
-0.3V~VDD+0.7V |
V |
Electric parameters (If there is no special explanation,TA= 25 ℃,,VCC = 5V,,VSS= 0V.
|
parameter |
symbol |
Minimum |
typical |
maximum |
unit |
Test Conditions |
|
Input Current |
II |
Intersection |
Intersection |
± 1 |
tadpole |
VI= VDD/VSS |
|
High level input |
VIH |
2.7V |
Intersection |
VDD+0.7V |
V |
DIn |
|
Low -level input |
VIL |
-0.3V |
Intersection |
0.7V |
V |
DIn |
Switching characteristics (If there is no special explanation,TA= 25 ℃,,VCC= 5V,,VSS= 0V.
|
parameter |
symbol |
Minimum |
typical |
maximum |
unit |
Test Conditions |
|
Transmission delay time |
TPLZ |
Intersection |
Intersection |
300 |
NS |
CL = 15pf, DIN → DOUT, RL = 10kΩ |
|
Decrease time |
TTHZ |
Intersection |
Intersection |
120 |
crickets |
Cl = 300pf, outr/outg/outb |
|
Input capacitance |
CI |
Intersection |
Intersection |
15 |
PF |
Intersection |
led Characteristic parameter
|
parameter |
symbol |
color |
Quiescent Current:<0.6mA |
test |
|||
|
Minimum |
Typical |
Maximum |
unit |
condition ((Working currentCure |
|||
|
Light strength |
IV |
Red |
300 |
380 |
600 |
MCD |
16MA |
|
Green |
800 |
1050 |
1500 |
||||
|
Blue |
200 |
270 |
400 |
||||
|
wavelength |
λD |
Red |
620 |
623 |
630 |
NM |
16MA |
|
Green |
510 |
520 |
520 |
||||
|
Blue |
465 |
471 |
475 |
||||
