H4-105KYG
- Manufacturer: QILSTE
- Package: 0402 (1005 Metric)
- Description: 黄绿色 1.0*0.5*0.4
- RoHs Status: Rohs Compliant
1,Product Description/ Features

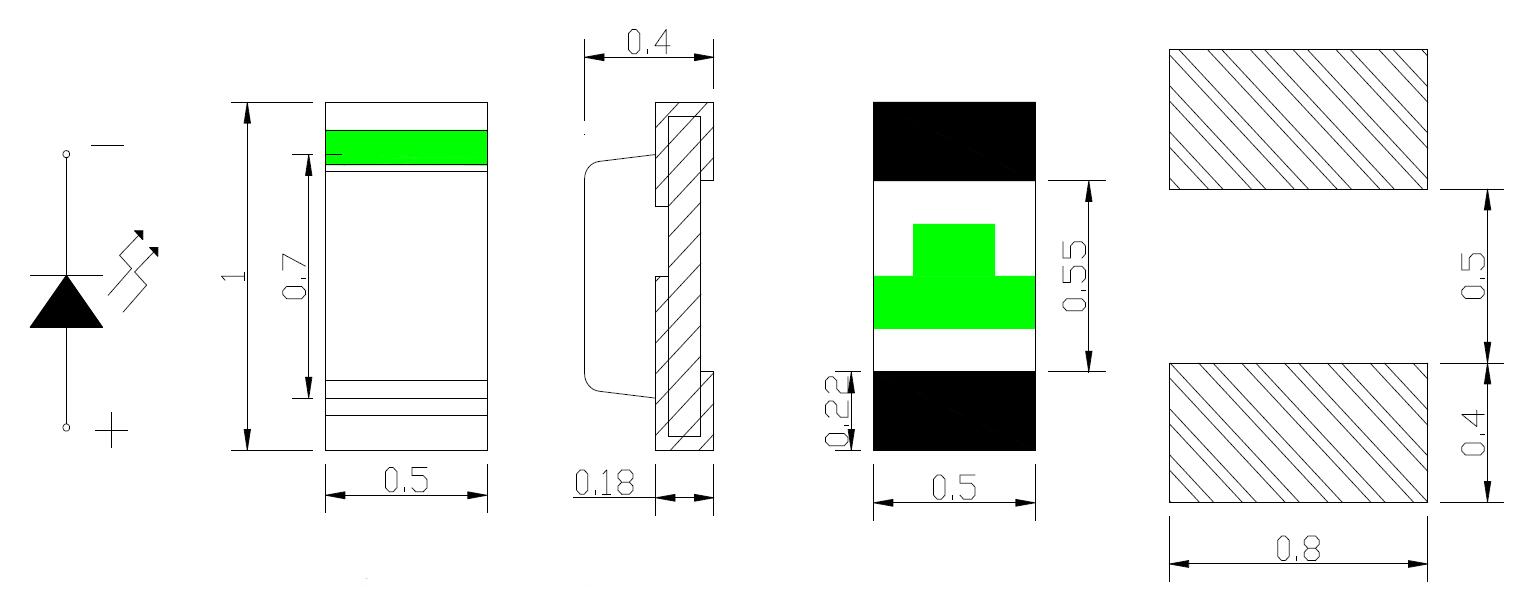

Bleak physical dimension/Package (L/W/h): 1.0x0.5x0.4 mm
-
color/ Color: Bright yellow and green / Ultra Bright Standard Yellow-Green
-
colloid/ Lens: Transparent plane collagen/ Water Clear Flat Mold
-
EIAStandard standard packaging/ EIA STD Pactkage
-
Environmental products, in line withROHSRequire/ Meet Rohs, Green Product
-
Applicable to automatic patch machine/ Compatible with SMTOMATIC EQUIPMENT
-
Suitable for infrared return welding process/ Composition with Infrared Reflow Solder Process
4The maximum absolute rated value/ Absolute maximum ratings (TA = 25℃) ℃)
|
Parameter Parameter |
symbol Symbol |
Maximum rated value Rating |
Uniter Unit |
|
Power consumption Power DISSIPATION |
PD |
60 |
MW |
|
Maximum pulse current/ Peak FORWARD CURRENT (1/10 Duty ratio, 0.1ms VeinCure |
IFP |
100 |
ma |
|
Positive DC work current DC FORWARD CURRENT |
If |
25 |
ma |
|
Reverse voltage Reverse Voltage |
VR |
5 |
V |
|
Working temperature Operating Temperature Range |
TOPR |
-30°C ~ + 85°C |
|
|
Storage environment temperature Storage Temperator Range |
TSTG |
-40°C ~ + 90°C |
|
|
Welding conditions Soldering Condition |
TSOL |
Refund welding/ Reflow Soldering: 260°C ,,10s Manual welding/ Hand Soldering: 300° C ,,3S |
|
5,Optical parameters/ Electrical Optical Characteristics (TA = 25℃) ℃)
|
Parameter Parameter |
symbol Symbol |
Minimum Min. |
Represent Typ. |
Maximum MAX. |
Uniter Unit |
Test Conditions Test Condition |
|
Light Luminous intensity |
IV |
--- |
11.5 |
--- |
MCD |
If = 5ma |
|
Halflight strong angle Viewing angle |
2θ1/2 |
--- |
120 |
--- |
DEG |
If = 5ma |
|
Main wavelength Dominant wavelength |
λD |
568 |
--- |
574 |
NM |
If = 5ma |
|
Peak wavelength Peak wavelenth |
λP |
--- |
574 |
--- |
NM |
If = 5ma |
|
Forward Voltage Forward Voltage |
VF |
1.8 |
--- |
2.2 |
V |
If = 5ma |
|
Reverse current Reverse Current |
IR |
--- |
--- |
5 |
μA |
VR = 5V |
|
Semi -width Spectral Line Half-Width |
Δλ |
--- |
15 |
--- |
NM |
If = 5ma |
